RGG type vertical wire wound resistor
Technical parameters:
Overview: RGG type vertical wire wound resistor (cement resistor) is applicable to DC or AC low frequency circuits, as partial pressure, shunt, load, and sampling resistor.
Features: This product uses ceramic inner core (general resistor uses organic fiber core); high temperature resistance; good insulation performance; strong overload capacity (withstand 10 times rated power within  5 seconds);vertical installation saves circuit board.
working environmental conditions:
Environment temperature: -55 ℃ ~ 275 ℃, relative humidity: (95 ± 3)% (40 ℃)
Atmospheric pressure: 8.5kpa overload: resistance variation in (2%R+0.05Europe).
Vibration: vibration frequency is 10-500Hz. Voltage: 1500 volts AC peak (1 minutes)

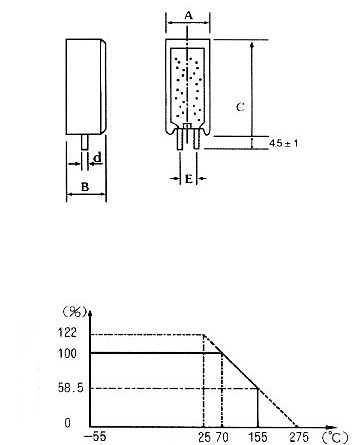

structure, size and characteristics
Special instructions:
Low resistance is extended to 0.0085 Ohm (8.5 milliohms);
High resistance is extended to 36000 Ohm (36 K.);
And can be customized to withstand 30 times power overload products(in 3 seconds)
